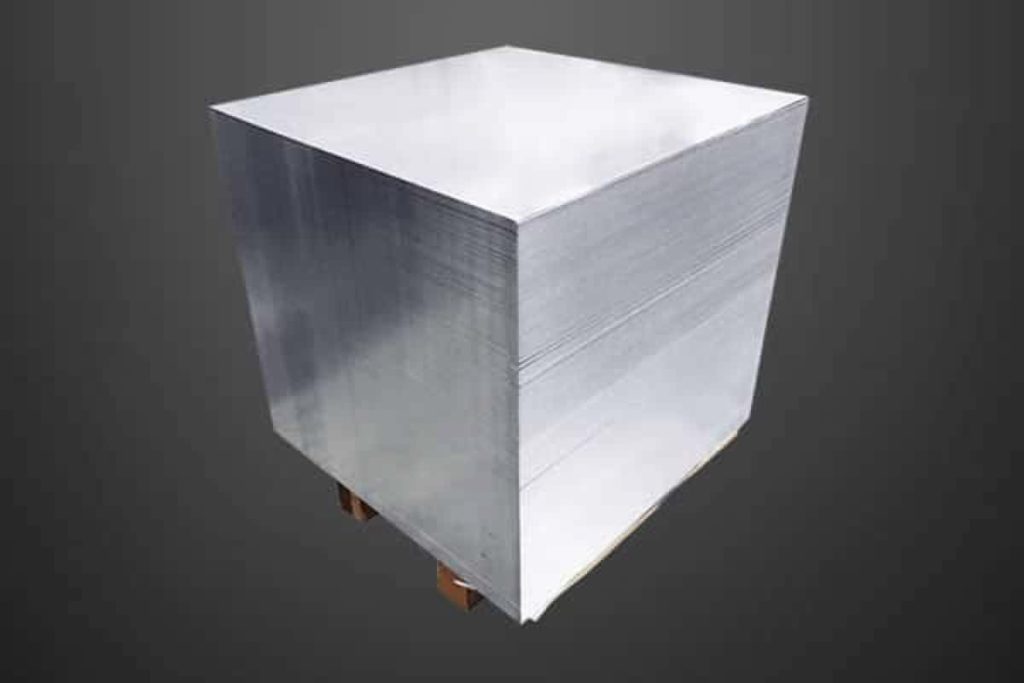

Stainless Steel Sheets/ Blanks

stainless-steel-blanksstainless-steel-blanks
AISI 430 BA cut size sheets for home applianceAISI 430 BA cut size sheets for home appliance
Gang Jou stainless steel cut sheetsGang Jou stainless steel cut sheets
430 BA/PVC stainless steel various cut size sheets in export packing430 BA/PVC stainless steel various cut size sheets in export packing
430 BA/PVC stainless steel cut size sheets in export packing430 BA/PVC stainless steel cut size sheets in export packing
bespoke export packingbespoke export packing
stainless steel material in custom export packingstainless steel material in custom export packing

Machine Feature:

600mm: Applicable to 100mm narrow Stainless Steel Sheets cutting and we offered custom/ bespoke size.

650mm: Applicable to 100mm ~650mm Width Stainless Steel Blank Sheets, provide varoius dimensions.

Thickness: 0.3mm~2.0mm
Width: 100mm~650mm
Film coating: Black & white / blue colour
Surface: 2B / BA / HL / No.4
Application : Domestic uses or Commercial uses of Kitchen equipment / Home Appliances / Auto Parts / Cookware etc.

Surface

SurfaceThicknessCharacteristicsApplication Guide
2B0.3mm~2.0mmFinished by heat treatment, acid picked after cold rolling, to processed to make the skin pass line to be white bright.Medical device, food industry, construction material, kitchen utensils, and Public facility.
BA0.3mm~2.0mmProcessed with bright heat treatment after cold rolling. The surface finish is bright annealed like a mirrored surface.Kitchenware, home appliances, construction materials and decorating use.
No.40.3mm~2.0mmPolishing with No.150-180 abrasives on 2B surface.Medical device, construction materials and kitchenware.
HL0.3mm~2.0mmAs known Hair Line, finished by 2B continuous polishing streaks by using abrasive of suitable grain size.Construction materials, elevator surface, electronic gadgets.

Chemical Composition (%)

GradeCSiMnPSNiCrMo
304≤0.08≤0.75≤2≤0.045≤0.038~1018~20
304H≤0.042≤0.54≤1.12≤0.025≤0.0028~1018~20
304L≤0.03≤1.00≤2≤0.045≤0.038~1318~20
430≤0.12≤1.00≤1≤0.040≤0.03016~18
316≤0.08≤1.00≤2≤0.045≤0.0310~1416~182~3
316L≤0.03≤1.00≤2≤0.045≤0.0310~1516~18

Mechanical Properties

GradeYield StrengthTensile StrengthElongation.Hardness
N/mm²N/mm²%HRBHV
304≥205≥520≥40≤90≤200
304H≤370
304L≥175≥485≥40≤90≤200
430≥205≥450≥22≤88≤200
316≥205≥515≥40≤90≤200
316L≥170≥480≥40≤95≤200
